MODULA Europa

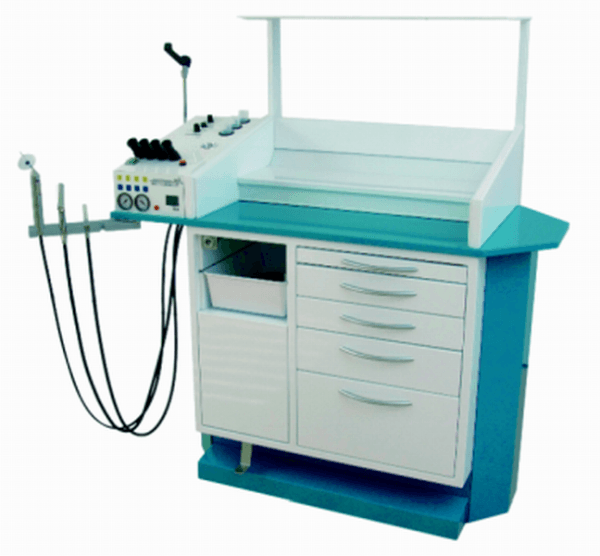

MODULA Europe – easy maintenance, high-quality and functionality. MODULA Europe – characteristic features are its great variety and individual configuration such as extension desk, PC-workplace or gallery. We design and manufacture your personal ENT treatment unit according to your requirements. MODULA Europe – optimal size, all components are well positioned.
Standard equipment
• High quality electrolytic zincplated steel cabinet, extremely hard wearing with enamel finish
• Standard colour steel: RAL 1001 (beige) / 9010 (white) / 7044 (grey) / 5010 (blue) / 5018 (turquoise)
• Mobile on 4 antistatic heavy duty castors
• 20 years guarantee on metal cabinet
• Electronic function part with foiled keyboard, 8 different function keys, digital temperature
display and 2 manometers (compressed air and vacuum)
• Holder for suction handpiece and light cable
• Holder for headlamp, not switchable
• Integrated mirror heater
• Powered suction system: suction performance 40 l/min, 0 to -0,8 bar, 1,5 l secretion glas with safety overflow system (manual emptying) with bacterial filter
• 1 big, 1 shallow and 2 small drawers
• 3 removable disinfection quivers
• Instruments on 2 levels with melamin trays and built-in illumination
• Tray for used instruments, melamin
• Waste bin, opening with foot pedal, self closing, low noise
• Transparent acrylic top cover, storable behind the unit after opening
• Control panel on the left side
• Writing leaf
• Standard colour steel: RAL 1001 (beige) / 9010 (white) / 7044 (grey) / 5010 (blue) / 5018 (turquoise)
• Mobile on 4 antistatic heavy duty castors
• 20 years guarantee on metal cabinet
• Electronic function part with foiled keyboard, 8 different function keys, digital temperature
display and 2 manometers (compressed air and vacuum)
• Holder for suction handpiece and light cable
• Holder for headlamp, not switchable
• Integrated mirror heater
• Powered suction system: suction performance 40 l/min, 0 to -0,8 bar, 1,5 l secretion glas with safety overflow system (manual emptying) with bacterial filter
• 1 big, 1 shallow and 2 small drawers
• 3 removable disinfection quivers
• Instruments on 2 levels with melamin trays and built-in illumination
• Tray for used instruments, melamin
• Waste bin, opening with foot pedal, self closing, low noise
• Transparent acrylic top cover, storable behind the unit after opening
• Control panel on the left side
• Writing leaf
Optional equipment
• 37°C warm water rinsing system – water heater principle with LED display of the current temperature to be reached, optional intensive thermic disinfection, stainless steel handpieces
• Compressed air system – with oilfree noiseless compressor, stainless steel pressure tank, chromiumplated hand-piece with 3 sprayers and acrylic glass holder
• Up to 4 holders for endoscopes, removable, pre-heated
• Headlamp holder with automatic switch on/ off
• Suction unit – with manual emptying of the secretion glass or with Secretomatic function: automatic draining of glass with subsequent rinsing and cleaning with water
• Unit for rinsing of suction hoses with or without disinfection system
• Cold light sources – up to 4 integrated cold light sources – each 150 W – swivelling holder for head lamp with automatic on/off switching, height adjustment
• Compressed air system – with oilfree noiseless compressor, stainless steel pressure tank, chromiumplated hand-piece with 3 sprayers and acrylic glass holder
• Up to 4 holders for endoscopes, removable, pre-heated
• Headlamp holder with automatic switch on/ off
• Suction unit – with manual emptying of the secretion glass or with Secretomatic function: automatic draining of glass with subsequent rinsing and cleaning with water
• Unit for rinsing of suction hoses with or without disinfection system
• Cold light sources – up to 4 integrated cold light sources – each 150 W – swivelling holder for head lamp with automatic on/off switching, height adjustment
